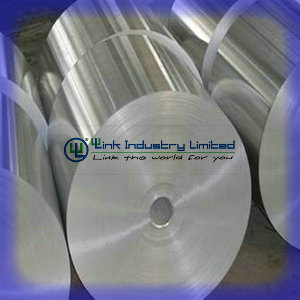

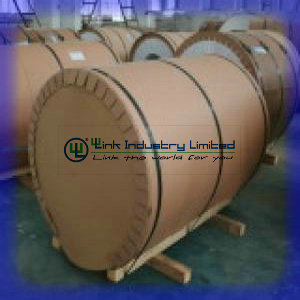

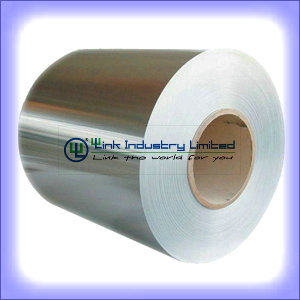

Aluminiu and its alloy strip in coil
Alloy: 1x,3x,5x ,6x,8x series
Temper: O, H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, H112
Thickness: 0.2mm~7mm
Width: 30mm~2,200mm
Coil Inner Diameter for 405, 505, 605mm could be supplied, Maximum Coil Outer Diameter is 1750mm

|
Variety |
Alloy |
Temper |
Size (mm) |
|
Thickness |
Width |
|
Hot rolled coil |
1x、3x、5x、8x series |
O, F, H112 |
2.5~7.0 |
900~1700 |
|
Stock for micron foil |
1235 |
H14 |
0.25~0.50 |
900~1500 |
|
Coating sheet |
1x、3x、5x series |
H14,H16,H18, H22,H24, H26 |
0.18~0.75 |
1200~1550 |
|
Curtain coil |
1100, 3003 |
H12, H22, H24, H26 |
1.~3. |
1000~1500 |
|
5005, 5052 |
H22, H24, H32, H34 |
|
Lithographic coil |
1050 |
H18 |
0.23~0.28 |
650~1500 |
|
Can stock |
3104 |
H19 |
0.28~0.31 |
1000~1550 |
|
Ceiling stock |
1x,3x series |
H14, H24, H16,H26 |
0.4~1.0 |
200~1450 |
|
5005、5052 |
H24, H22 |
|
Bottle lids stock |
8011 |
H16, H18 |
0.20~0.3 |
50~1550 |
|
Coil for Al-composite panel |
1x, 3x, 8x series |
O, H22 |
0.2~1.5 |
30~1550 |
|
Other coils |
1x, 3x, 8x series and 5005、5052 |
O, H1x, H2x |
0.20~6.0 |
60~2200 |
|
5x series |
O, H1x,
H2x, H3x |
0.3~4.0 |
900~2000 |

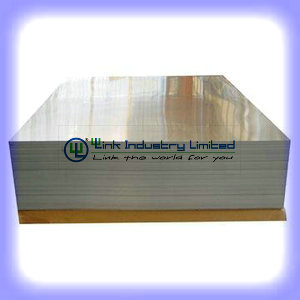

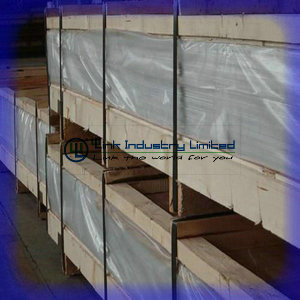

Aluminiu and alloy sheet and plate
Alloy: 1x,3x,5x,8x series
Temper: O,F,H12,H14,H16,H18,H19,H32,H34,H36,H38,H111,H112, H321
Thickness: 0.2~500 mm
Width: 500~2500 mm
Length: 2000~10000 mm

|
Variety |
Alloy |
Temper |
Size（mm） |
|
|
Thickness |
Width |
Length |
|
|
Heat
treatment non-reinfored plate & sheet |
1x
3x
8x
series |
O,F,H111,H112,
H12,H14,H16,H18,H19 |
0.2~1.0 |
500~1500 |
500~4000 |
|
|
|
|
1.1~2.0 |
1000~1800 |
2000~10000 |
|
|
2.1~4. 0 |
1000~2200 |
|
|
4.0~150 |
1000~2200 |
|
|
5x
series |
O,F,H111,H112,H12,H14,
H16,H18,H19,H32,H34,
H36,H38, H321 |
0.2~1.0 |
1000~1500 |
2000~10000 |
|
|
1.1~2.0 |
1000~1800 |
|
|
2.1~4.0 |
1000~2200 |
|
|
4.0~150 |
1000~2200 |
|
|

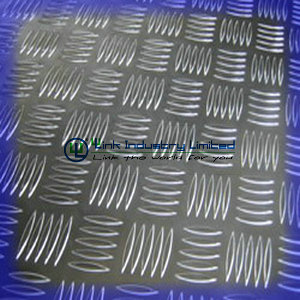

Tread plate |
1x,3x, 5x series |
O,F,H22,H24, H26 |
Bottom thick 1.0~4.0 |
1000~1600 |
2000~10000 |
|
|
Embossed Sheet and Coil |
1x, 3x, 5x series |
O,F,H12,H14,H16,H18, H22, H2, H26, H32 |
0.2~3 |
500~1500 |
Coil |
|

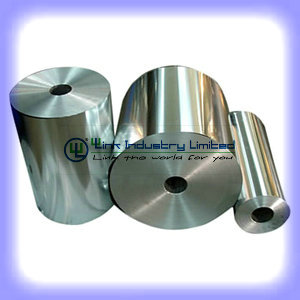

Aluminium foil
Alloy: 1050, 1100, 1235, 3001, 3003, 8011
Thickness: 0.005~0.08mm
Width: 200~1800mm

|
Variety |
Alloy |
Temper |
Size（mm） |
|
Thickness |
Width |
I.D |
Max O.D |
|
Appliance foil |
8011 |
O |
0.01~0.02 |
200~700 |
76.2/152.4 |
450 |
|
Cable foil |
1050 |
O |
0.1~0.2 |
200~600 |
76.2 |
800 |
|
Pharmacy foil |
1235
8011 |
H18/H19 |
0.018~0.022 |
400~600 |
76.2 |
600 |
|
Air-conditioner foil |
,
1100
8011
3102 |
H22/H24
H26/H19 |
0.07~0.20 |
400~1310 |
150/200
505 |
1450 |
|
Cigarette foil |
1235 |
O |
0.006~0.007 |
460~1320 |
76.2 |
400 |
|
Further fabricating foil |
8011 |
O/H22/H24
H26/H18 |
0.012~0.06 |
300~1300 |
76.2 |
1300 |
|
Electronic foil |
3003
3001 |
H19 |
0.02~0.05 |
500~1000 |
76.2 |
1450 |
|
Lithographic sheet |
1050 |
H18 |
0.14~0.15 |
600~1470 |
150/200 |
1200 |
|
Decoration foil |
1100
3003 |
H18 |
0.026~0.15 |
1240~1400 |
150/200 |
1200 | |
| |
| |
|
|
